"KN" Series Circular Pitch Knurls
|
|||||||
|
Included Tooth Angle
|
Pitch Inch/Metric
|
Steel Type
|
|
|
|
|
|
|
Straight
|
30° LH Diagonal
|
30° RH Diagonal
|
30° Male
|
30° Female
|
|||
|
90º
|
10 TPI / 2.54mm
|
HSS
|
KNS 210
|
KNL 210
|
KNR 210
|
-
|
-
|
|
Hi-Cobalt
|
KNSX210
|
KNLX210
|
KNRX210 |
-
|
-
|
||
|
90º
|
12 TPI / 2.12mm
|
HSS
|
KNS 212
|
KNL 212
|
KNR 212
|
-
|
|
|
Hi-Cobalt
|
KNSX212
|
KNLX212
|
KNRX212
|
-
|
-
|
||
|
90º
|
14 TPI / 1.81mm
|
HSS
|
KNS 214
|
KNL 214
|
KNR 214
|
-
|
-
|
|
Hi-Cobalt
|
KNSX214
|
KNLX214
|
KNRX214
|
-
|
-
|
||
|
90º
|
16 TPI / 1.59mm
|
HSS
|
KNS 216
|
KNL 216
|
KNR 216
|
KNM 216
|
KNF 216
|
|
Hi-Cobalt
|
KNSX216
|
KNLX216
|
KNRX216
|
KNMX216
|
KNFX216
|
||
|
90º
|
20 TPI / 1.27mm
|
HSS
|
KNS 220
|
KNL 220
|
KNR 220
|
KNM 220
|
KNF 220
|
|
Hi-Cobalt
|
KNSX220
|
KNLX220
|
KNRX220
|
KNMX220
|
KNFX220
|
||
|
90º
|
21 TPI / 1.21mm
|
HSS
|
KNS 221
|
-
|
-
|
-
|
-
|
|
Hi-Cobalt
|
KNSX221
|
-
|
-
|
-
|
-
|
||
|
90º
|
24 TPI / 1.06mm
|
HSS
|
KNS 224
|
-
|
-
|
-
|
-
|
|
Hi-Cobalt
|
KNSX224
|
-
|
-
|
-
|
-
|
||
|
90º
|
25 TPI / 1.02mm
|
HSS
|
KNS 225
|
KNL 225
|
KNR 225
|
KNM 225
|
KNF 225
|
|
Hi-Cobalt
|
KNSX225
|
KNLX225
|
KNRX225
|
KNMX225
|
KNFX225
|
||
|
90º
|
30 TPI / 0.85mm
|
HSS
|
KNS 230
|
KNL 230
|
KNR 230
|
KNM 230
|
KNF 230
|
|
Hi-Cobalt
|
KNSX230
|
KNLX230
|
KNRX230
|
-
|
KNFX230
|
||
|
90º
|
35 TPI / 0.73mm
|
HSS
|
KNS 235
|
KNL 235
|
KNR 235
|
-
|
-
|
|
Hi-Cobalt
|
KNSX235
|
-
|
-
|
-
|
-
|
||
|
90º
|
40 TPI / 0.64mm
|
HSS
|
KNS 240
|
KNL 240
|
KNR 240
|
KNM 240
|
-
|
|
Hi-Cobalt
|
KNSX240
|
KNLX240
|
KNRX240
|
-
|
-
|
||
|
70º
|
50 TPI / 0.51mm
|
HSS
|
KNS 450
|
KNL 450
|
KNR 450
|
KNM 450
|
KNF 450
|
|
Hi-Cobalt
|
KNSX450
|
KNLX450
|
KNRX450
|
-
|
KNFX450
|
||
|
70º
|
80 TPI / 0.32mm
|
HSS
|
KNS 480
|
KNL 480
|
KNR 480
|
-
|
KNF 480
|
|
Hi-Cobalt
|
KNSX480
|
KNLX480
|
KNRX480
|
-
|
KNFX480
|
||
|
"KN" Series Diametral Pitch Knurls
|
|||||||
|
Included Tooth Angle
|
Pitch
|
Steel Type
|
|
|
|
|
|
|
Straight
|
30° LH Diagonal
|
30° RH Diagonal
|
30° Male
|
30° Female
|
|||
|
80º
|
064 DP
|
HSS
|
KNS 064
|
KNL 064
|
KNR 064
|
-
|
KNF 064
|
|
Hi-Cobalt
|
KNSX064
|
KNLX064
|
KNRX064
|
-
|
-
|
||
|
80º
|
096 DP
|
HSS
|
KNS 096
|
KNL 096
|
KNR 096
|
KNM 096
|
KNF 096
|
|
Hi-Cobalt
|
KNSX096
|
KNLX096
|
KNRX096
|
-
|
-
|
||
|
80º
|
128 DP
|
HSS
|
KNS 128
|
KNL 128
|
KNR 128
|
-
|
-
|
|
Hi-Cobalt
|
KNSX128
|
KNLX128
|
KNRX128
|
-
|
-
|
||
|
80º
|
160 DP
|
HSS
|
KNS 160
|
KNL 160
|
KNR 160
|
-
|
-
|
|
Hi-Cobalt
|
KNSX160
|
KNLX160
|
KNRX160
|
-
|
-
|
||
*D.P.= Diametral Pitch Knurls (064, 096, 128, & 160 only). Made to insure tracking on fractional size stock from the x-slide.
All Diametral Pitch Knurls made to American Standards (ASA B5.30 1958). Diametral Pitch Knurls produce the D.P. number of teeth per inch of diameter. Rolled Circular Pitch Knurls, produce the TPI number of teeth per inch of circumference measured normal to the teeth.
| Net Prices are per knurl ** Quantity shown, ** Quantity price may be obtained by totaling any combination of stock knurls. |
| SERIES |

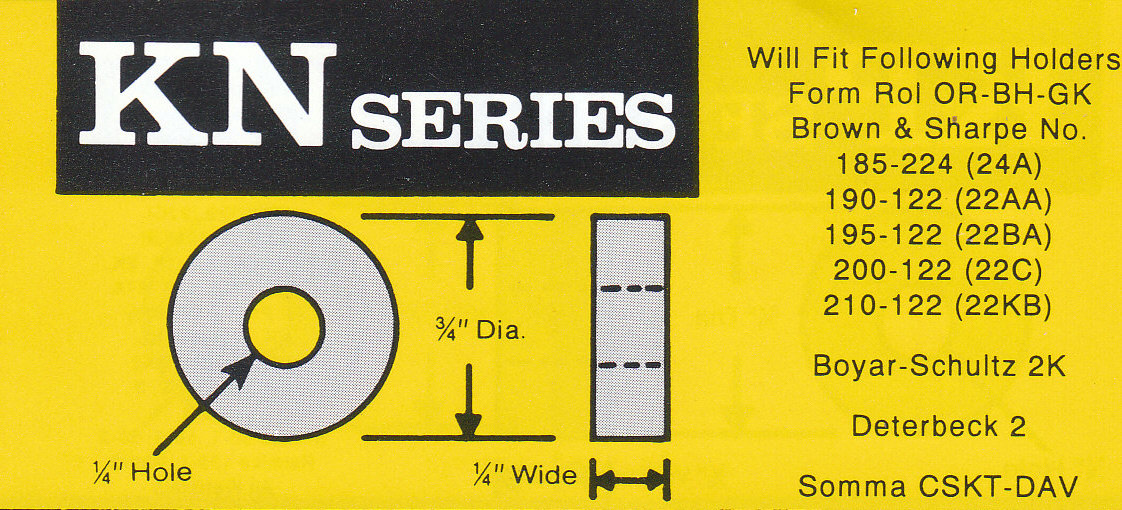

KNURL SIZE DIA.\WIDTH\HOLE |
KNURL TOOTH PATTERN | KNURL SYSTEM |
** QUANTITIES (PCS.) |
|||||
| 1-5 | 6-9 | 10-19 | 20-49 | 50-99 | 100+ | ||||
| KN | 3/4 X 1/4 X 1/4 | Straight, Diagonal | Circ. Pitch | $13.80 | $12.15 | $10.75 | $9.95 | $9.25 | $8.95 |
| Straight, Diagonal | D.P. | $17.95 | $15.80 | $14.00 | $12.90 | $12.05 | $11.65 | ||
| Diamond, Male/Fem. | Circ. Pitch | $20.70 | $18.20 | $16.15 | $14.90 | $13.85 | $13.45 | ||
| Diamond, Male/Fem. | D.P. | $26.75 | $23.55 | $20.85 | $19.25 | $17.90 | $17.40 | ||
| KNX | 3/4 X 1/4 X 1/4 | Straight, Diagonal | Circ. Pitch | $17.95 | $15.80 | $14.00 | $12.90 | $12.05 | $11.65 |
| Straight, Diagonal | D.P. | $23.35 | $20.55 | $18.20 | $16.80 | $15.65 | $15.20 | ||
| Diamond, Male/Fem. | Circ. Pitch | $26.95 | $23.70 | $21.00 | $19.40 | $18.05 | $17.50 | ||
| Diamond, Male/Fem. | D.P. | $34.80 | $30.60 | $27.15 | $25.05 | $23.30 | $22.60 | ||
| Knurls stocked FULL FACE * Beveled up to 1/16 as required $1.00 EA. |
|
||||||
| Price for shoulder on any stock knurl (To be added to stock price) | Quantity | 1 | 2 | 3-5 | 6-9 | 10-19 | 20+ |
| Price for shoulder | $26.85 | $18.70 | $13.80 | $9.50 | $6.05 | $4.05 | |
