"OU" Series Circular Pitch Knurls
|
|||||||
|
Included Tooth Angle
|
Pitch Inch/Metric
|
Steel Type
|
|
|
|
|
|
|
Straight
|
30° LH Diagonal
|
30° RH Diagonal
|
30° Male
|
30° Female
|
|||
|
90º
|
12 TPI / 2.12mm
|
HSS
|
OUS 212
|
OUL 212
|
OUR 212
|
-
|
-
|
|
Hi-Cobalt
|
OUSX212
|
OULX212 |
OURX212 |
-
|
-
|
||
|
90º
|
14 TPI / 1.81mm
|
HSS
|
OUS 214
|
OUL 214
|
OUR 214
|
-
|
-
|
|
Hi-Cobalt
|
OUSX214
|
OULX214
|
OURX214
|
-
|
-
|
||
|
90º
|
16 TPI / 1.59mm
|
HSS
|
OUS 216
|
OUL 216
|
OUR 216
|
-
|
-
|
|
Hi-Cobalt
|
OUSX216
|
OULX216
|
OURX216 |
-
|
-
|
||
|
90º
|
20 TPI / 1.27mm
|
HSS
|
OUS 220
|
OUL 220
|
OUR 220
|
OUM 220
|
OUF 220
|
|
Hi-Cobalt
|
OUSX220
|
OULX220
|
OURX220 |
OUMX220 |
OUFX220 |
||
|
90º
|
21 TPI / 1.21mm
|
HSS
|
OUS 221
|
OUL 221
|
OUR 221
|
-
|
-
|
|
Hi-Cobalt
|
OUSX221
|
OULX221
|
OURX221
|
-
|
-
|
||
|
90º
|
25 TPI / 1.02mm
|
HSS
|
OUS 225
|
OUL 225
|
OUR 225
|
OUM225
|
OUF 225
|
|
Hi-Cobalt
|
OUSX225
|
OULX225
|
OURX225 |
OUMX225
|
OUFX225 |
||
|
90º
|
30 TPI / 0.85mm
|
HSS
|
OUS 230
|
OUL 230
|
OUR 230
|
OUM 230
|
OUF 230
|
|
Hi-Cobalt
|
OUSX230
|
OULX230
|
OURX230 |
OUMX230 |
OUFX230 |
||
|
90º
|
33 TPI / 0.77mm
|
HSS
|
OUS 233
|
OUL 233
|
OUR 233
|
-
|
-
|
|
Hi-Cobalt
|
OUSX233
|
OULX233
|
OURX233
|
-
|
-
|
||
|
90º
|
35 TPI / 0.73mm
|
HSS
|
OUS 235
|
-
|
-
|
-
|
-
|
|
Hi-Cobalt
|
-
|
-
|
-
|
-
|
-
|
||
|
70º
|
50 TPI / 0.64mm
|
HSS
|
OUS 450
|
-
|
-
|
-
|
-
|
|
Hi-Cobalt
|
-
|
-
|
-
|
-
|
-
|
||
|
"OU" Series Diametral Pitch Knurls
|
|||||||
|
Included Tooth Angle
|
Pitch
|
Steel Type
|
|
|
|
|
|
|
Straight
|
30° LH Diagonal
|
30° RH Diagonal
|
45° LH Diagonal
|
45° RH Diagonal
|
|||
|
80º
|
064 DP
|
HSS
|
OUS 064
|
-
|
-
|
-
|
-
|
|
Hi-Cobalt
|
OUSX064
|
-
|
-
|
-
|
-
|
||
|
80º
|
096 DP
|
HSS
|
OUS 096
|
-
|
-
|
-
|
-
|
|
Hi-Cobalt
|
OUSX096
|
-
|
-
|
-
|
-
|
||
*D.P.= Diametral Pitch Knurls (064, 096, 128, & 160 only). Made to insure tracking on fractional size stock from the x-slide.
All Diametral Pitch Knurls made to American Standards (ASA B5.30 1958). Diametral Pitch Knurls produce the D.P. number of teeth per inch of diameter. Rolled Circular Pitch Knurls, produce the TPI number of teeth per inch of circumference measured normal to the teeth.
| Net Prices are per knurl ** Quantity shown, ** Quantity price may be obtained by totaling any combination of stock knurls. |
| SERIES |

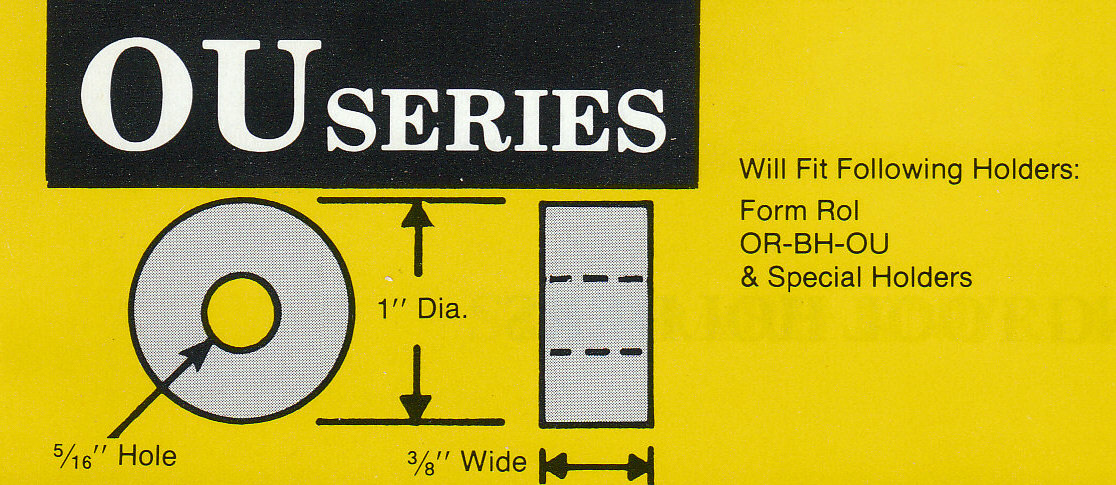

KNURL SIZE DIA.\WIDTH\HOLE |
KNURL TOOTH PATTERN | KNURL SYSTEM |
** QUANTITIES (PCS.) |
|||||
| 1-5 | 6-9 | 10-19 | 20-49 | 50-99 | 100+ | ||||
| OU | 1 X 3/8 X 5/16 | Straight, Diagonal | Circ. Pitch | $22.20 | $19.55 | $17.30 | $16.00 | $14.85 | $14.45 |
| Straight, Diagonal | D.P. | $28.85 | $25.40 | $22.50 | $20.75 | $19.35 | $18.75 | ||
| Diamond, Male/Fem. | Circ. Pitch | $33.30 | $29.30 | $25.95 | $24.00 | $22.30 | $21.65 | ||
| Diamond, Male/Fem. | D.P. | $43.05 | $37.90 | $33.60 | $31.00 | $28.85 | $28.00 | ||
| OUX | 1 X 3/8 X 5/16 | Straight, Diagonal | Circ. Pitch | $28.90 | $25.45 | $22.55 | $20.80 | $19.35 | $18.80 |
| Straight, Diagonal | D.P. | $37.55 | $33.05 | $29.30 | $27.05 | $25.15 | $24.40 | ||
| Diamond, Male/Fem. | Circ. Pitch | $43.35 | $38.15 | $33.80 | $31.20 | $29.05 | $28.20 | ||
| Diamond, Male/Fem. | D.P. | $56.05 | $49.30 | $43.70 | $40.35 | $37.55 | $36.45 | ||
| Knurls stocked FULL FACE * Beveled up to 1/16 as required $1.00 EA. |
|
||||||
| Price for shoulder on any stock knurl (To be added to stock price) | Quantity | 1 | 2 | 3-5 | 6-9 | 10-19 | 20+ |
| Price for shoulder | $26.85 | $18.70 | $13.80 | $9.50 | $6.05 | $4.05 | |
