"KR" Series Circular Pitch Knurls
|
|||||||
|
Included Tooth Angle
|
Pitch Inch/Metric
|
Steel Type
|
|
|
|
|
|
|
Straight
|
30° LH Diagonal
|
30° RH Diagonal
|
30° Male
|
30° Female
|
|||
|
90º
|
14 TPI / 1.81mm
|
HSS
|
KRS 214
|
-
|
-
|
-
|
-
|
|
Hi-Cobalt
|
KRSX214
|
-
|
-
|
-
|
-
|
||
|
90º
|
16 TPI / 1.59mm
|
HSS
|
KRS 216
|
KRL 216
|
KRR 216
|
KRM 216
|
KRF 216
|
|
Hi-Cobalt
|
-
|
-
|
-
|
-
|
KRFX216
|
||
|
90º
|
20 TPI / 1.27mm
|
HSS
|
KRS 220
|
KRL 220
|
KRR 220
|
KRM 220
|
KRF 220
|
|
Hi-Cobalt
|
KRSX220
|
KRLX220
|
KRRX220
|
-
|
KRFX220
|
||
|
90º
|
25 TPI / 1.02mm
|
HSS
|
KRS 225
|
KRL 225
|
KRR 225
|
KRM 225
|
KRF 225
|
|
Hi-Cobalt
|
-
|
-
|
-
|
-
|
-
|
||
|
90º
|
30 TPI / 0.85mm
|
HSS
|
KRS 230
|
KRL 230
|
KRR 230
|
||
|
Hi-Cobalt
|
-
|
-
|
-
|
||||
|
90º
|
40 TPI / 0.64mm
|
HSS
|
KRS 240
|
KRL 240
|
KRR 240 |
-
|
-
|
|
Hi-Cobalt
|
-
|
-
|
-
|
-
|
-
|
||
|
"KR" Series Diametral Pitch Knurls
|
|||||
|
Included Tooth Angle
|
Pitch
|
Steel Type
|
|
|
|
|
Straight
|
30° LH Diagonal
|
30° RH Diagonal
|
|||
|
80º
|
064 DP
|
HSS
|
KRS 064
|
||
|
Hi-Cobalt
|
-
|
||||
|
80º
|
096 DP
|
HSS
|
KRS 096
|
KRL 096
|
KRR 096
|
|
Hi-Cobalt
|
-
|
-
|
-
|
||
|
80º
|
128 DP
|
HSS
|
KRS 128
|
||
|
Hi-Cobalt
|
|
-
|
-
|
||
*D.P.= Diametral Pitch Knurls (064, 096, 128, & 160 only). Made to insure tracking on fractional size stock from the x-slide.
All Diametral Pitch Knurls made to American Standards (ASA B5.30 1958). Diametral Pitch Knurls produce the D.P. number of teeth per inch of diameter. Rolled Circular Pitch Knurls, produce the TPI number of teeth per inch of circumference measured normal to the teeth.
| Net Prices are per knurl ** Quantity shown, ** Quantity price may be obtained by totaling any combination of stock knurls. |
| SERIES |

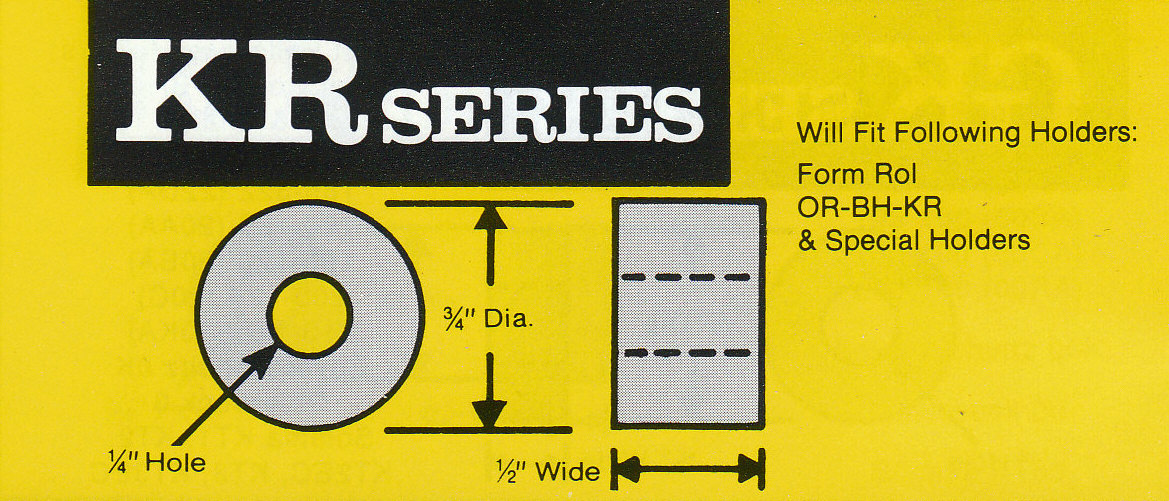

KNURL SIZE DIA.\WIDTH\HOLE |
KNURL TOOTH PATTERN | KNURL SYSTEM |
** QUANTITIES (PCS.) |
|||||
| 1-5 | 6-9 | 10-19 | 20-49 | 50-99 | 100+ | ||||
| KR | 3/4 X 1/2 X 1/4 | Straight, Diagonal | Circ. Pitch | $15.85 | $13.95 | $12.35 | $11.40 | $10.60 | $10.30 |
| Straight, Diagonal | D.P. | $20.60 | $18.15 | $16.05 | $14.85 | $13.80 | $13.40 | ||
| Diamond, Male/Fem. | Circ. Pitch | $23.80 | $20.95 | $18.55 | $17.15 | $15.95 | $15.45 | ||
| Diamond, Male/Fem. | D.P. | $30.75 | $27.05 | $24.00 | $22.15 | $20.60 | $20.00 | ||
| KRX | 3/4 X 1/2 X 1/4 | Straight, Diagonal | Circ. Pitch | $20.65 | $18.15 | $16.10 | $14.85 | $13.85 | $13.40 |
| Straight, Diagonal | D.P. | $26.85 | $23.65 | $20.95 | $19.35 | $18.00 | $17.45 | ||
| Diamond, Male/Fem. | Circ. Pitch | $31.00 | $27.30 | $24.20 | $22.30 | $20.75 | $20.15 | ||
| Diamond, Male/Fem. | D.P. | $40.05 | $35.25 | $31.25 | $28.85 | $26.85 | $26.05 | ||
| Knurls stocked FULL FACE * Beveled up to 1/16 as required $1.00 EA. |
|
||||||
| Price for shoulder on any stock knurl (To be added to stock price) | Quantity | 1 | 2 | 3-5 | 6-9 | 10-19 | 20+ |
| Price for shoulder | $26.85 | $18.70 | $13.80 | $9.50 | $6.05 | $4.05 | |
