"BP" Series Circular Pitch Knurls
|
|||||||
|
Included Tooth Angle
|
Pitch Inch/Metric
|
Steel Type
|
|
|
|
|
|
|
Straight
|
30° LH Diagonal
|
30° RH Diagonal
|
30° Male
|
30° Female
|
|||
|
90º
|
20 TPI / 1.27mm
|
HSS
|
BPS 220
|
-
|
- |
-
|
-
|
|
Hi-Cobalt
|
BPSX220
|
-
|
-
|
-
|
-
|
||
|
90º
|
25 TPI / 1.02mm
|
HSS
|
BPS 225
|
BPL 225
|
BPR 225
|
-
|
-
|
|
Hi-Cobalt
|
BPSX225
|
BPLX225
|
BPRX225
|
-
|
-
|
||
|
90º
|
30 TPI / 0.85mm
|
HSS
|
BPS 230
|
BPL 230
|
BPR 230
|
BPM 230
|
BPF 230
|
|
Hi-Cobalt
|
BPSX230
|
BPLX230
|
BPRX230
|
-
|
-
|
||
|
90º
|
35 TPI / 0.73mm
|
HSS
|
BPS 235
|
BPL 235
|
BPR 235
|
-
|
-
|
|
Hi-Cobalt
|
BPSX235
|
BPLX235
|
BPRX235
|
-
|
-
|
||
|
90º
|
40 TPI / 0.64mm
|
HSS
|
BPS 240
|
BPL 240
|
BPR 240
|
-
|
-
|
|
Hi-Cobalt
|
BPSX240
|
BPLX240
|
BPRX240
|
-
|
-
|
||
|
70º
|
50 TPI / 0.51mm
|
HSS
|
BPS 450
|
BPL 450
|
BPR 450
|
BPM 450
|
BPF 450
|
|
Hi-Cobalt
|
BPSX450
|
BPLX450
|
BPRX450
|
BPMX450
|
-
|
||
|
70º
|
60 TPI / 0.42mm
|
HSS
|
BPS 460
|
-
|
-
|
-
|
-
|
|
Hi-Cobalt
|
BPSX460
|
-
|
-
|
-
|
-
|
||
|
70º
|
70 TPI / 0.36mm
|
HSS
|
BPS 470
|
-
|
-
|
-
|
-
|
|
Hi-Cobalt
|
BPSX470
|
-
|
-
|
-
|
-
|
||
|
70º
|
80 TPI / 0.32mm
|
HSS
|
BPS 480
|
BPL 480
|
BPR 480
|
BPM 480
|
BPF 480
|
|
Hi-Cobalt
|
BPSX480
|
BPLX480
|
BPRX480
|
BPMX480
|
BPFX480
|
||
|
70º
|
90 TPI / 0.28mm
|
HSS
|
BPS 490
|
-
|
-
|
-
|
-
|
|
Hi-Cobalt
|
BPSX490
|
-
|
-
|
-
|
-
|
||
|
70º
|
100 TPI / 0.254mm
|
HSS
|
BPS 500
|
-
|
-
|
-
|
-
|
|
Hi-Cobalt
|
BPSX500
|
|
|
-
|
-
|
||
|
"BP" Series Diametral Pitch Knurls
|
|||||||
|
Included Tooth Angle
|
Pitch
|
|
|
|
|
|
|
|
Straight
|
30° LH Diagonal
|
30° RH Diagonal
|
30° Male
|
30° Female
|
|||
|
80º
|
096 DP
|
HSS
|
BPS 096
|
BPL 096
|
BPR 096
|
BPM 096
|
BPF 096
|
|
Hi-Cobalt
|
BPSX096
|
BPLX096
|
BPRX096
|
-
|
-
|
||
|
80º
|
128 DP
|
HSS
|
BPS 128
|
BPL 128
|
BPR 128
|
BPM 128
|
BPF 128
|
|
Hi-Cobalt
|
BPSX128
|
BPLX128
|
BPRX128
|
-
|
-
|
||
|
80º
|
160 DP
|
HSS
|
BPS 160
|
BPL 160
|
BPR 160
|
BPM 160
|
BPF 160
|
|
Hi-Cobalt
|
BPSX160
|
BPLX160
|
BPRX160
|
-
|
-
|
||
All Diametral Pitch Knurls made to American Standards (ASA B5.30 1958). Diametral Pitch Knurls produce the D.P. number of teeth per inch of diameter. Rolled Circular Pitch Knurls, produce the TPI number of teeth per inch of circumference measured normal to the teeth.
| SERIES |

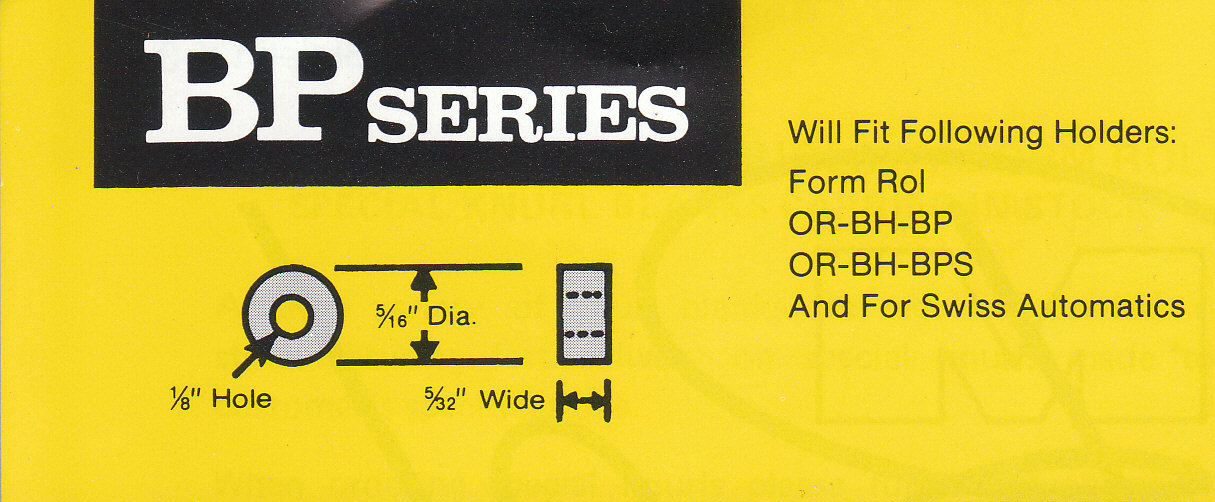

KNURL SIZE DIA.WIDTHHOLE |
KNURL TOOTH PATTERN | KNURL SYSTEM |
** QUANTITIES (PCS.) |
|||||
| 1-5 | 6-9 | 10-19 | 20-49 | 50-99 | 100 | ||||
| BP | 5/16 x 5/32 x 1/8 | Straight, Diagonal | Circ. Pitch | $15.30 | $13.45 | $11.95 | $11.00 | $10.25 | $9.95 |
| Straight, Diagonal | D.P. | $19.90 | $17.50 | $15.50 | $14.35 | $13.35 | $12.95 | ||
| Diamond, Male/Fem. | Circ. Pitch | $22.95 | $20.20 | $17.90 | $16.50 | $15.40 | $14.90 | ||
| Diamond, Male/Fem. | D.P. | $29.70 | $26.15 | $23.15 | $21.40 | $19.90 | $19.30 | ||
| BPX | 5/16 x 5/32 x 1/8 | Straight, Diagonal | Circ. Pitch | $19.90 | $17.50 | $15.50 | $14.35 | $13.35 | $12.95 |
| Straight, Diagonal | D.P. | $25.85 | $22.75 | $20.15 | $18.60 | $17.30 | $16.80 | ||
| Diamond, Male/Fem. | Circ. Pitch | $29.85 | $26.25 | $23.30 | $21.50 | $20.00 | $19.40 | ||
| Diamond, Male/Fem. | D.P. | $38.60 | $33.95 | $30.10 | $27.80 | $25.85 |
$25.10 |
||
| Knurls stocked FULL FACE * Beveled up to 1/16 as required $1.00 EA. |
|
||||||
| Price for shoulder on any stock knurl (To be added to stock price) | Quantity | 1 | 2 | 3-5 | 6-9 | 10-19 | 20 |
| Price for shoulder | $26.85 | $18.70 | $13.80 | $9.50 | $6.05 | $4.05 | |
