HI-COBALT material for improved tool life
Not all HI-COBALT dies will be in stock - please call for delivery.
|
||||||||||||
 |
||||||||||||
 |
||||||||||||
 |
||||||||||||

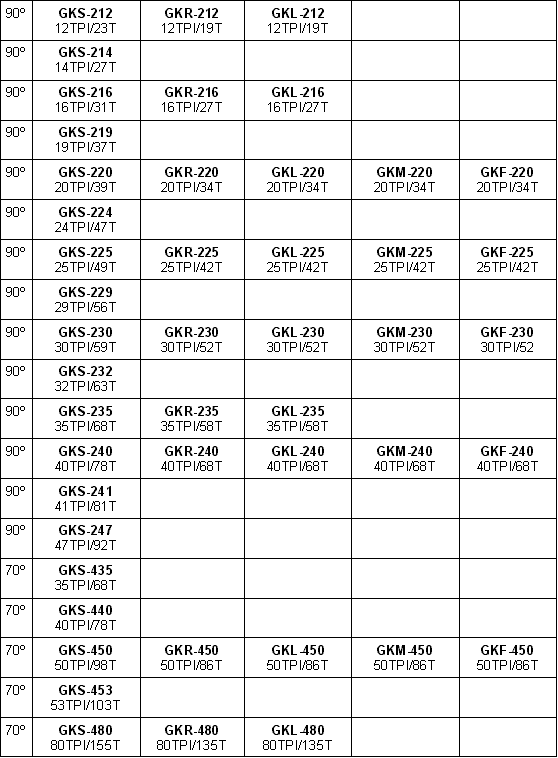

Equivalent Normal TPI

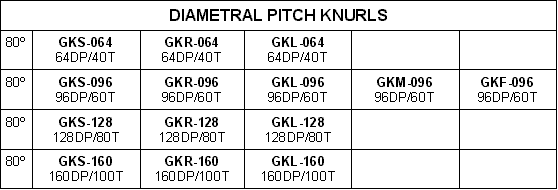

All Diametral Pitch Knurls made to American Standards (ASA B5.30 1958). Diametral Pitch Knurls produce the D.P. number of teeth per inch of diameter. Rolled Circular Pitch Knurls, produce the TPI number of teeth per inch of circumference measured normal to the teeth.
|
Series
|
Knurl Size |
KNURL TOOTH |
KNURL |
** QUANTITIES (Pcs.) | |||||

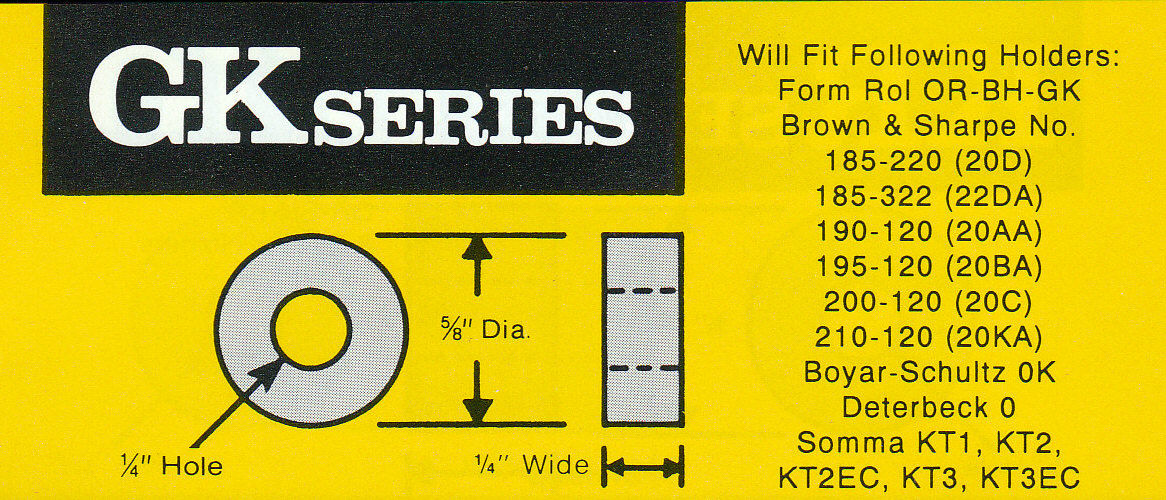

| Dia. \ Width \ Hole |
PATTERN |
SYSTEM |
1-5 | 6-9 | 10-19 | 20-49 | 50-99 | 100+ | |
|
GK X
|
5/8 x 1/4 x 1/4 | Straight, Diagonal | Circ. Pitch | $14.90 | $13.10 | $11.60 | $10.75 | $10.00 | $9.70 |
| Straight, Diagonal | D.P. | $19.35 | $17.05 | $15.10 | $13.95 | $12.95 | $12.60 | ||
| Diamond, Male/Fem. | Circ. Pitch | $22.35 | $19.65 | $17.45 | $16.10 | $14.95 | $14.55 | ||
| Diamond, Male/Fem. | D.P. | $28.90 | $25.45 | $22.55 | $20.80 | $19.35 | $18.80 | ||
***Not all HI-COBALT dies will be in stock - please call for delivery.
