HI-COBALT material for improved tool life
Not all HI-COBALT dies will be in stock - please call for delivery.






CIRCULAR PITCH KNURLS

* Circ. Pitch = Circular Pitch Knurls (220, 225, 230, 450, etc.), Last two digits give approximate TPI (Normal Circular Teeth Per Inch)







*D.P.=  Diametral Pitch Knurls (064, 096, 128, & 160 only). Made to insure tracking on fractional size stock from the x-slide.

Equivalent Normal TPI
Of Diametral Pitch Knurls

All Diametral Pitch Knurls made to American Standards (ASA B5.30 1958).  Diametral Pitch Knurls produce the D.P. number of teeth per inch of diameter.  Rolled Circular Pitch Knurls, produce the TPI number of teeth per inch of circumference measured normal to the teeth.

Net Prices are per knurl ** Quantity shown, ** Quantity price may be obtained by totaling any combination of stock knurls.




Series



       Knurl Size

KNURL TOOTH

KNURL

   ** QUANTITIES (Pcs.)
  Dia. \ Width \ Hole

      PATTERN

SYSTEM

  1-5   6-9   10-19   20-49    50-99   100+

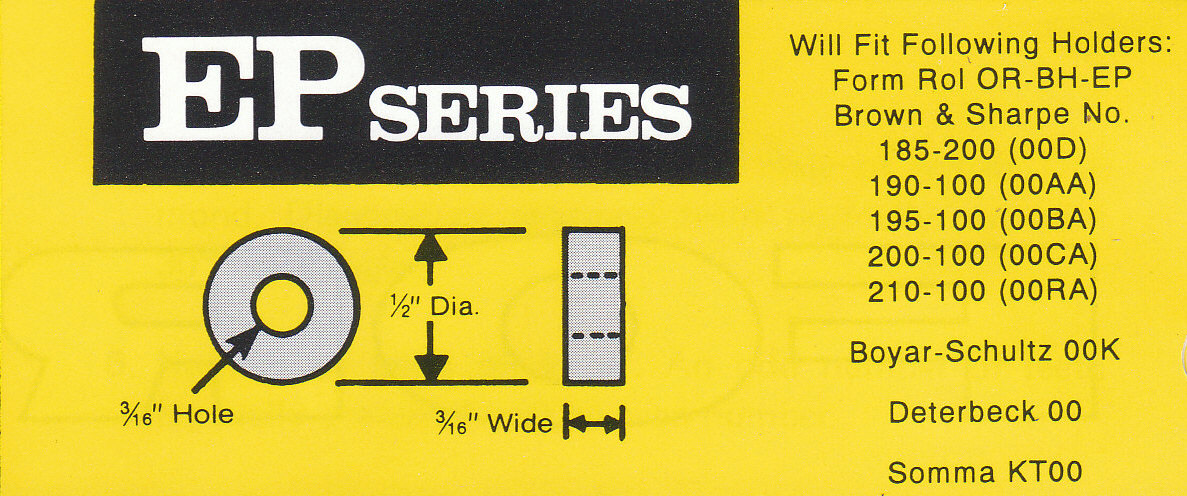

EPX



 1/2 x 3/16 x 3/16 Straight, Diagonal Circ. Pitch $13.65 $12.00 $10.65 $9.85 $9.15 $8.85
Straight, Diagonal D.P. $17.75 $15.60 $13.85 $12.80 $11.90 $11.55
Diamond, Male/Fem. Circ. Pitch $20.50 $18.05 $16.00 $14.75 $13.75 $13.35
Diamond, Male/Fem. D.P. $26.50 $23.30 $20.65 $19.10 $17.75 $17.25

****Not all HI-COBALT dies will be in stock - please call for delivery.
